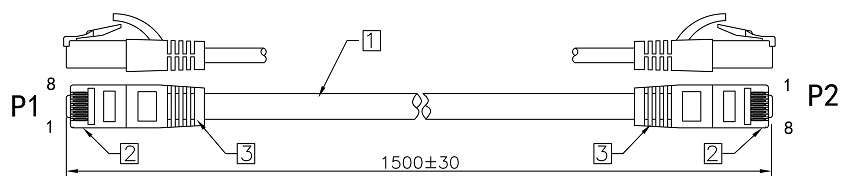

Engineering Drawing
Data
Item Description | UTP CAT6 LAN CABLE |
Model No. | RJ45U6-CFBK |
Conductor Material | 24AWG/Copper |
Conductor Cover Material | PE |
Core Diameter | 0.95mm |
Insulation | PP Cross |
Shielding Type | UTP |
Connector Type | RJ45 8P8C |
Connection Standard | 568B |
Connector | 3-50u Gold Plated RJ45 |
Connector Material | PC |
Transmission Speed | 2500Mbps |
Transmission Frequency | 250MHZ |
Twisted Wire Mode | 4 Pairs Twisted |
Cover Material | PVC |
External Cable Diameter | 5.5mm |
Wire Shape | Round |
Operating Temperature | -20°C - +75°C |
Option Color | Red, Purple,Green, Yellow, Blue,Orange, Gray,Black |
Lenth of Cable | 0.5m-20m for option |
